Compact size & design convenience and compatibility

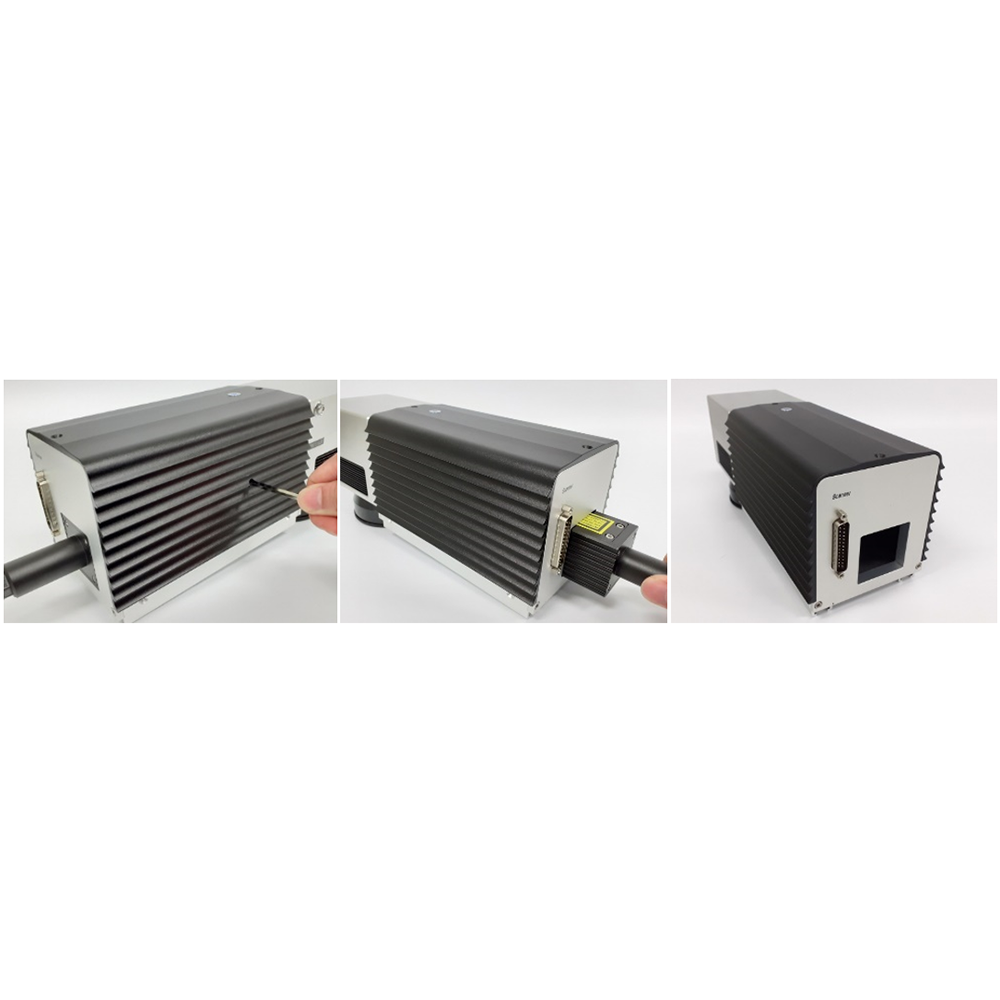

▶Small head size, Easy laser source separation
Same size as INFINI laser head mounting bracket
Optimized design easy and quick laser source separation
Structure facilitates system integration
Dramatically improved productivity

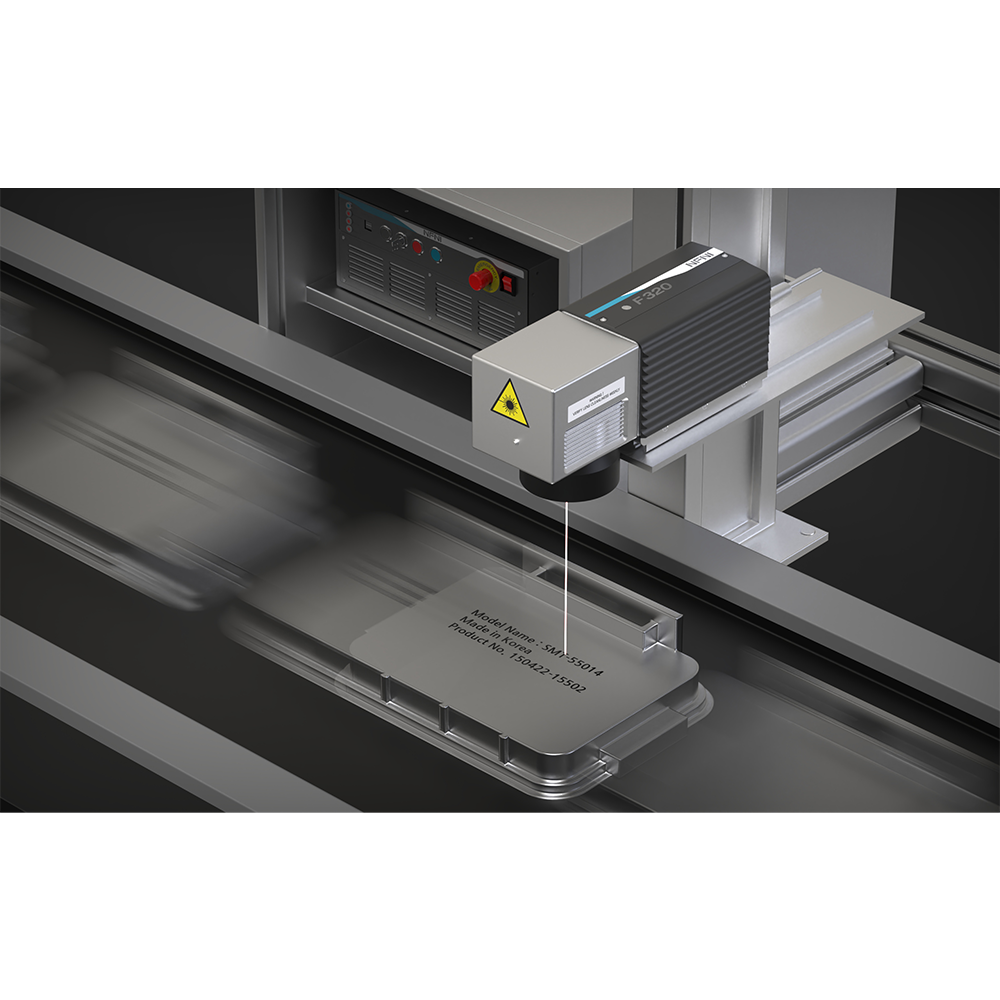

▶Fly marking
Marking of fast-moving products without stopping
Dramatically improved productivity
Completely compatible with smart factories
▶Communication command support
Control equipment by sending commands using communications
Change data with communication commands
Responding to various environments
▶BTU(Beam Tuning Unit)
Supports a variety of installation environments.
Freedom to choose the installation location.
Improve work efficiency

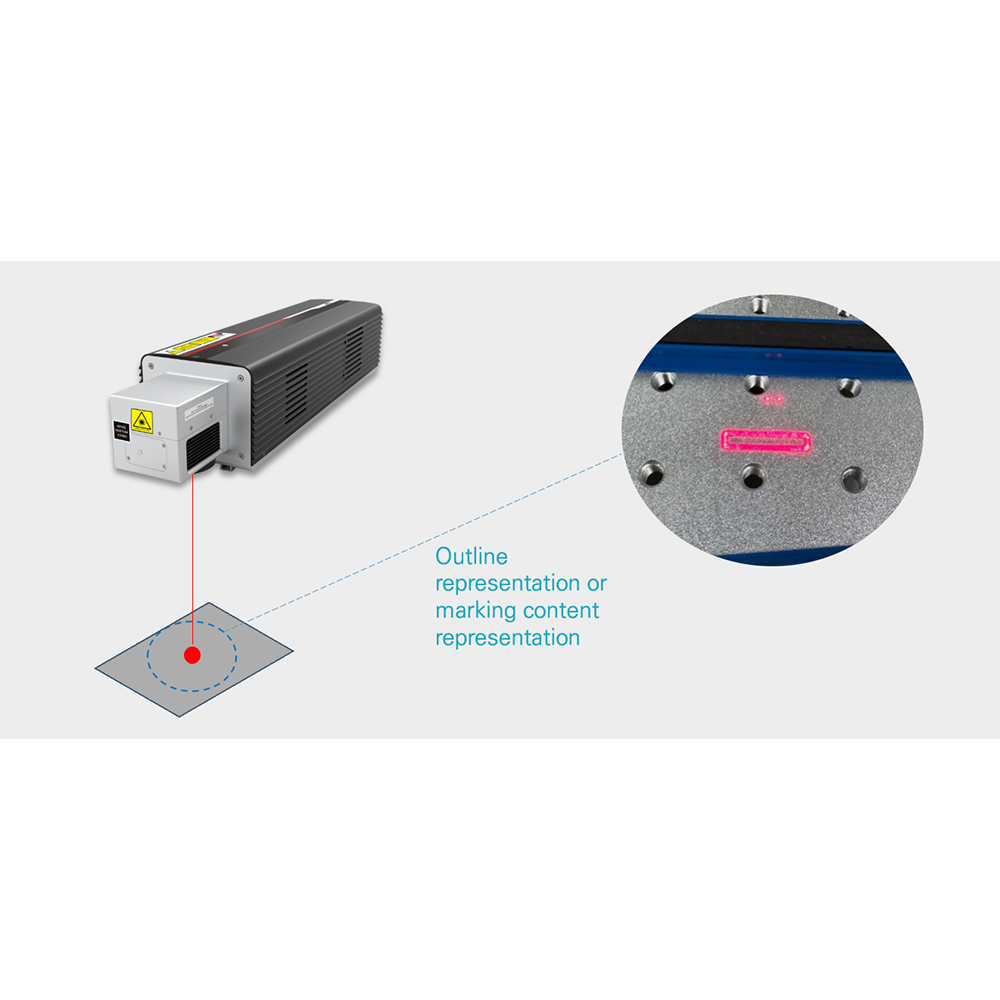

▶ Equipped with a red beam & RED Point Beam
Enables pre-checking of precise marking locations
Saves time and improves work efficiency
Intuitive laser beam focus setting
Noise reduction
▶ Cooling FAN speed control system
Cooling fan speed is adjusted based on temperature
Providing efficient thermal management
Reduces noise, saves energy, and extends fan life
Cable Safety
▶ UL Wiring and Signal, IO Cables
Noise shielding, improved signal quality
Eddy current prevention, high-frequency noise suppression
INFINI Fiber 3 Series applicable to various materials
Our major customers
Key Features
Laser Power: 20W / 30W / 60W / 100W
Wavelength: 1064 nm
High-Speed Marking: up to 3,000 mm/s
High Accuracy: ±0.001 mm
No Consumables
Easy Installation & Operation
Maintenance-Free Design
The M model is a pulse-controlled MOPA laser

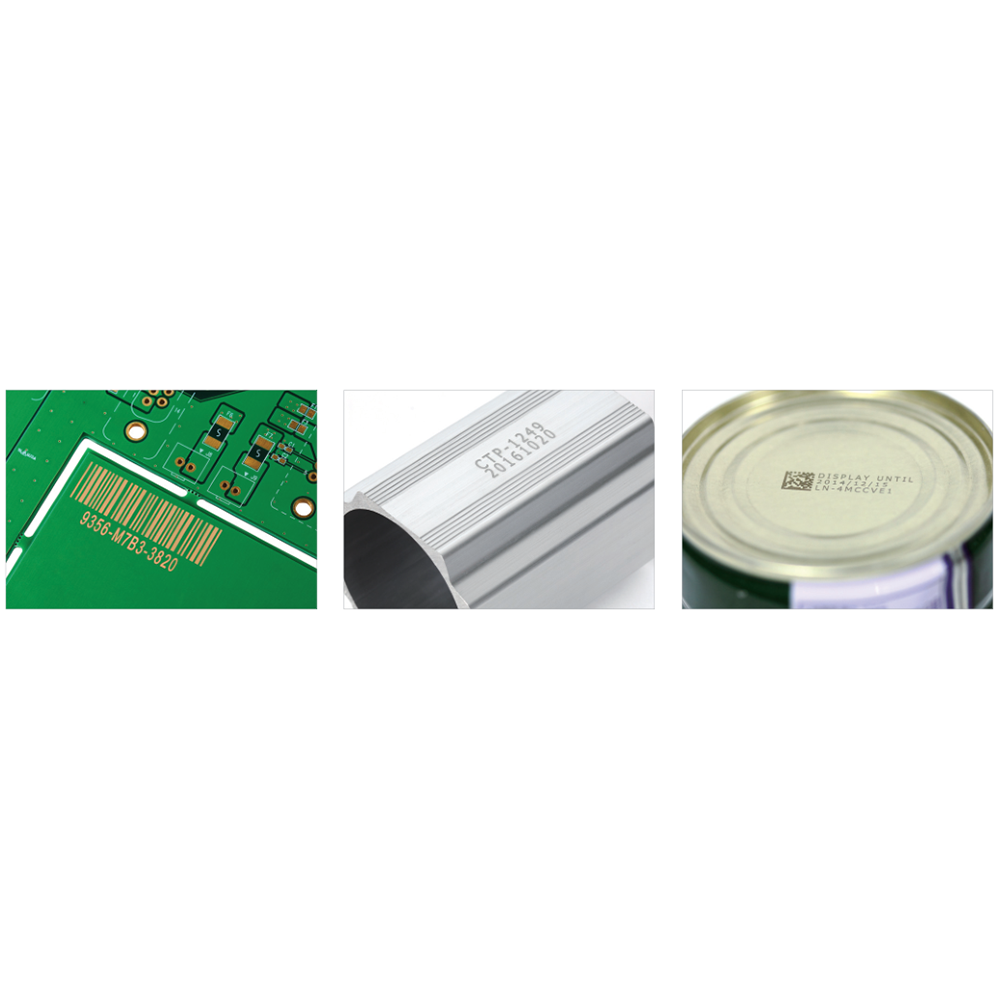

Applications
Metal parts, industrial components, electronics, automotive parts,
Text · Logo · Serial No. · Date · 1D / 2D Barcode (QR Code)
Specifications (Summary)
Cooling: Air-Cooled
Lens Area: 70×70 mm ~ 330×330 mm
Operating Temp.: 0–40°C
Interfaces: Ethernet (TCP/IP), I/O, Sensor, Encoder, Interlock, Lamp
Supported Data: Text, Image, Vector, Barcode
